42 Dodge 9.25 Rear Axle Diagram

CHRYSLER 9.25" FRONT BEAM AXLE / 14 BOLT. AAM 1050 Series CHRYSLER 10.5" REAR AXLE / 14 BOLT CHRYSLER 10.5" REAR AXLE / 14 BOLT WITH E-LOCK. AAM 1150 Series CHRYSLER 11.5" REAR AXLE / 14 BOLT / Single and Dual Wheel CHRYSLER 11.5" REAR AXLE / 14 BOLT / Rear Axle Coil Spring Suspension CHRYSLER 11.5" REAR AXLE / 14 BOLT / Rear Axle Leaf Spring. Axle Description The 9 1/4" axle housing consists of a cast iron differential carrier center section with axle tubes extending from the center section sides. The axle tubes are pressed into the differential housing and then welded into position to form a one-piece axle housing. The differential case is a one-piece design.

AAM 9.25 Front Axle - 12-Bolt Cover - Exploded View Click to Enlarge. Images presented for reference and educational purposes only. To have an image removed from this website, please contact us at: info@differentials

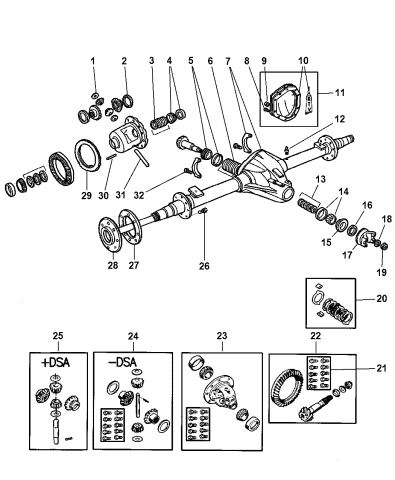

Dodge 9.25 rear axle diagram

MoparPartsGiant offers the wholesale prices for genuine 2004 Dodge Ram 1500 parts.Parts like. Axle Housing, Rear, With Differential Parts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty.. Parts fit for the following vehicle options. Engine: 10 Cyl 8.3L, 6 Cyl 3.7L, 8 Cyl 4.7L, 8 Cyl 5.7L. Transmission: 5-Speed Automatic Transmission, 5-Speed. gm 9.25" front axle / ifs / 4wd and awd gm 9.25" front axle / ifs salisbury. aam 950 series gm 9.5" rear axle / 14 bolt gm 9.5" rear axle / salisbury / 12 bolt. aam 976 series gm 9.76" rear axle / salisbury / 12 bolt. aam 1050 series gm 10.5" rear axle / 14 bolt. aam 1150 series gm 11.5" rear axle / 14 bolt Having problems with your Dodge pickup 9.25 inch rear end, we offer a complete line of rear end/Differential Ring and Pinion Sets and parts. For the Chrysler 9.25 inch differential; our inventory includes ring gear and pinion sets, including aftermarket and OE gear sets.

Dodge 9.25 rear axle diagram. Vehicle Fitment. This is a genuine AAM axle slinger. This goes on the outer stub axle where it butts up to the back of the wheel bearing hub assembly. This fits 2003+ Dodge Ram 2500 and 3500 series 4X4 trucks with the 9.25 American Axle Manufacturing front axle. We have also used these on Dana 60 Dodge stub axles. Weight. gm 9.25" front axle / ifs / 4wd and awd gm 9.25" front axle / ifs salisbury. aam 950 series gm 9.5" rear axle / 14 bolt gm 9.5" rear axle / salisbury / 12 bolt. aam 976 series gm 9.76" rear axle / salisbury / 12 bolt. aam 1050 series gm 10.5" rear axle / 14 bolt. aam 1150 series gm 11.5" rear axle / 14 bolt 440 and a 4 speed. Joined Sep 1, 2006. ·. 976 Posts. #3 · Mar 14, 2011. That is an 8-3/4" axle. also listed as 8.75. Very similiar to the ford 9". It's a banjo style axle and all the gear section comes out from the front. Very good axle to have. Having problems with your Dodge pickup 9.25 inch rear end, we offer a complete line of rear end/Differential Ring and Pinion Sets and parts. For the Chrysler 9.25 inch differential; our inventory includes ring gear and pinion sets, including aftermarket and OE gear sets.

the 1 tons have d60's d70's and the aam 9.25 front axles and some d60's for the lighter trucks and d70's d80's and the new almost a true gm-14 bolt but slightly different aam 10.50" rear axle also some of the old dodge trucks like early 70's 1/2 tons had the 8 3/4" rear with a drop out third member and can be made to have 35 spline axle's. D. 913A368 Detroit Truetrac Chrysler 9.25" Rear Dodge Ram Limited Slip Differential. 1 review. MSRP: Was: Now: $644.14. Add to Cart. Quick view Compare. Dodge 9.25 Trac-Lok Differential Posi Carrier Assembly Complete 31 Spline C9.25. This is a genuine Dana Trac-Loc differential for Dodge vehicles with the 9.25″ ring gear from 1970-2009 with 31 spline axles. This is what came out in these year vehicles from the factory if they had a posi track differential. They also make a nice upgrade when. Note: AAM makes two types of 9.25" axles—Salisbury and Clamshell. Dodge/Ram and some GM trucks use the Salisbury type beam front axle. The axles shown in this video are a Ram 11.5" (rear Salisbury) and Ram 9.25" (front Salisbury beam type). Chevrolet/GMC use a similar 11.5" AAM Salisbury rear axle in HD pickups.

Fits Rear; Chrysler 9.25"; Corporate 9.25 LD Rear Axle; 3.55 Rear Axle Ratio; Exc. Anti-Spin Differential Rear Axle; Lt. Duty 4WD or Rear; Chrysler 9.25"; Corporate 9.25 LD Rear Axle; 3.92 Rear Axle Ratio; Anti-Spin Differential Rear Axle; Lt. Duty 2WD or Rear; Chrysler 9.25"; Corporate 9.25 LD Rear Axle; 3.21 Rear Axle Ratio; Exc. Anti-Spin Differential Rear Axle; Regular Cab; 8 Foot Bed; Lt. Trac loc rearends are identified by a paper band around the axle housing. It will give ring gear ratio and type of differential. Durango's may be more likely to have the 9.25 trac loc if they are 4x4. You can get any 9.25 rearend and add trac-loc for about $300 for a new unit. LKQ by me has them all the time for $150 you pull it. Dodge 9.25 Rear Axle Diagram. This Dodge 4WD uses the Chrysler rear axle equipped with a Dana Trac-Lok clutch-type limited slip differential. The action of this. " Ram Axle Specs Corporate " Rear Axle. Used on and 9 1/4" Axle Parts List (see parts diagram for identification). 3rd Gen Ram Tech - Calling all who have rebuilt a Rear axle!! AAM 9.25" Dodge/Chrysler Front Axle The AAM 9.25 AKA Chrysler 9.25" front axle are found in modern Dodge trucks with a reverse rotation ring gear of 9.25" diameter and 33 spline axle shafts. It differs from the rear 9.25" by spline count and standard rotation gears making them non-interchangeable
