Volvo Sunroof Drain Pass Through - Genuine Volvo 30753148 C30, S40, S60, S80, V70, XC60, XC70, XC90 1 Rating Available In Stock. QTY. Volvo Sunroof Motor (S40 V50 XC70) - Genuine Volvo 31283958 C30, S60, S80 Available Ships in 2 business days. Ships Free QTY $371.99 + View more Sunroof Motor parts > The rear sunroof drains are rare to fail, but many people face issues with the front drains from clogging or cracking with time. Upon examining the drain system, it is easy to see where the faults lay; it is the perfect example of an over-engineered part by Volvo.

carefully remove the a-pillar trim piece and you will see the drain tube. open the sunroof and at the front are the drain holes one on each side. we have an old speedo cable we use to clean them. make sure the tubes are properly attached top and bottom. Volvo XC90 2016+ S40 & V50 Forum 2004.5+ Volvo S40 & V40 2000-2004; C30, C70 2006+, S40...

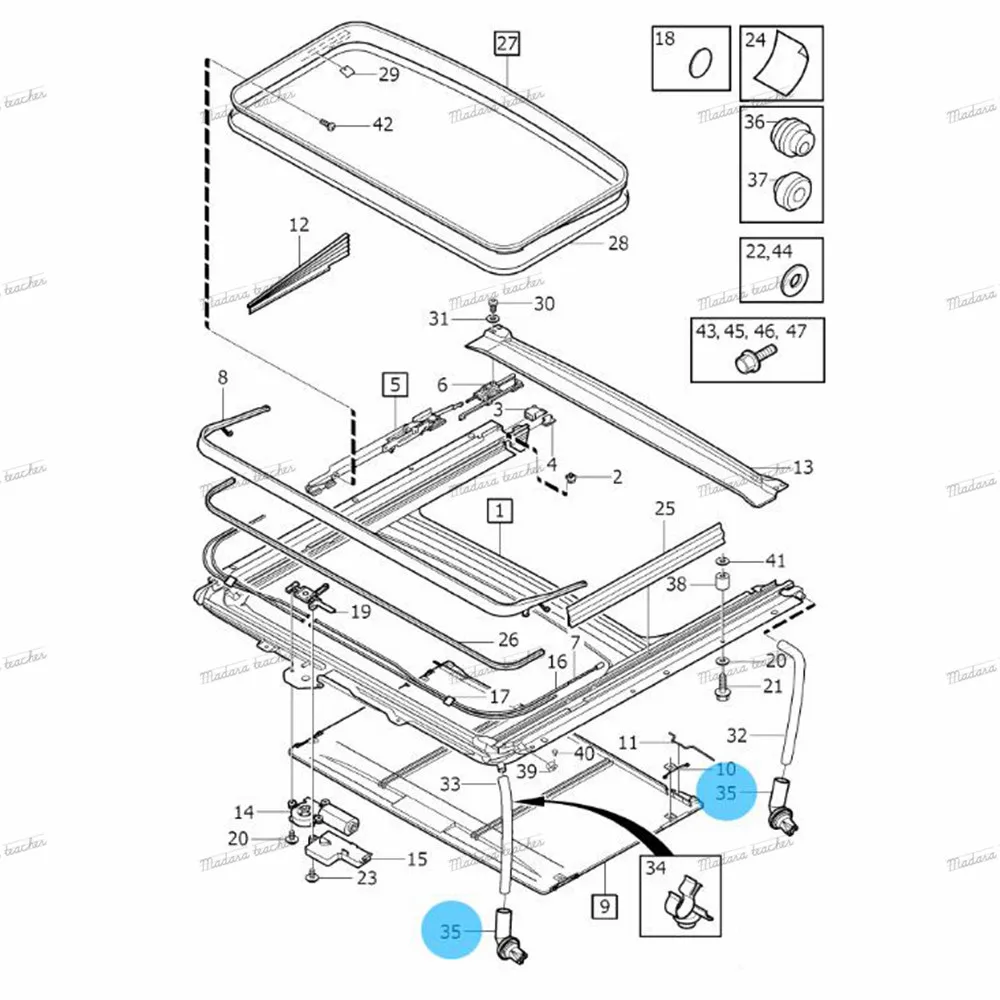

Volvo s40 sunroof drain diagram

Lawsuit alleges sunroofs leak in Volvo S40, S60, S80, V70, V50 and Volvo XC90 vehicles. March 1, 2021 — A Volvo sunroof leak lawsuit is still seeking class action certification more than 10. Tl-the contact owns a 2006 Volvo S40. The contact stated that the sunroof leaked water causing the electrical functions to fail. The failure occurred on numerous occasions. The vehicle was taken to a dealer where it was diagnosed that the drain hose failed. The vehicle was not repaired. The manufacturer was not made aware of the failure. How To Service Light Reset in Volvo S60, S80, V70, XC70, XC90. Volvo S80 (1999 – 2005) How To Tutorials. Volvo S80, V70, S70, 850 – 1996 to 2001 – 2.5D, TDI Diesel Engine – Scheduled Plan. Volvo S60, S80, V70, XC70, XC90 – 2001 to 2006 – D5, 2.4D Auxiliary Serpentine Drive Belt Routing Diagram.

Volvo s40 sunroof drain diagram. Help! I have a new leak on my Wifes XC90. It appeared to be the sunroof drains but they were clear. Tracing it further, I found it is coming from the large white plastic box under the dash and behind the glovebox on the passenger side. A link to the parts diagram is shown below. The plastic housing does have a drain through the floor, and it is clear both down through the body and up into the. Volvo S40 Sunroof Drain Diagram Unique 2004 Volvo S40 Engine Bigpack Volvo C30 S40 V50 C70 Turbo 04 13 From Do88 Se Share this post. 0 Response to "Volvo V50 Engine Diagram" Post a Comment. Note: Only a member of this blog may post a comment. Newer Post Older Post Home. Iklan Atas Artikel. by JDS60R » 01 May 2017, 00:24. front 2. from the corners of the moon roof ,under the headliner then through the a pillar , then through the body near where the fender meets the door. On s60 models the common leak is the drain being clogged at the corners of the moonroof itself. Normal fix for s60 is to open moon roof fully, clean the drains. Latest Volvo How To Tutorials. Volvo S40, V50, C30, C70 – 2004 to 2013 – How to replace the battery. Volvo S60, S80, V70, XC70, XC90 – 2001 to 2006 – D5, 2.4D Auxiliary Serpentine Drive Belt Routing Diagram. Volvo 850, S70, V70, C70 – Auxiliary Serpentine Drive Belt Routing Diagram. Volvo 850 Turbo – TCV / Vacuum hoses diagram.

Debris that creeps onto the sunroof pan can also clog the drain outlets in the pan corners. Debris that is washed down from the rear window drains can clog up the 90 degree plastic fitting which can flood your trunk and cause the sunroof drains to back up.The front tubes go down the A pillars and exit behind the front wheel; the rear go down. How To Service Light Reset in Volvo S60, S80, V70, XC70, XC90. Volvo S80 (1999 – 2005) How To Tutorials. Volvo S80, V70, S70, 850 – 1996 to 2001 – 2.5D, TDI Diesel Engine – Scheduled Plan. Volvo S60, S80, V70, XC70, XC90 – 2001 to 2006 – D5, 2.4D Auxiliary Serpentine Drive Belt Routing Diagram. Volvo Car Electronic Wiring Diagram Manual Download (265MB) Volvo S40 V50 2005 Electrical Wiring Diagram Manual INSTANT DOWNLOAD. 2005 Volvo S40 (04-)/V50 Wiring Diagrams Download. Volvo S40 V50 S60 S70 V70 C70 Xc70 S80 Xc90 Workshop Electri. 2005 Volvo S40 Service & Repair Manual Software. Could it be a sunroof problem if water is leaking from the rear heat duct below the driver's seat on a Volvo S40? Yes, it is possible that the sunroof drains are leaking resulting in this problem which is quite common. These drain holes are present on each 'A' pillar along either side of the windshield and connect to a rubber elbow.

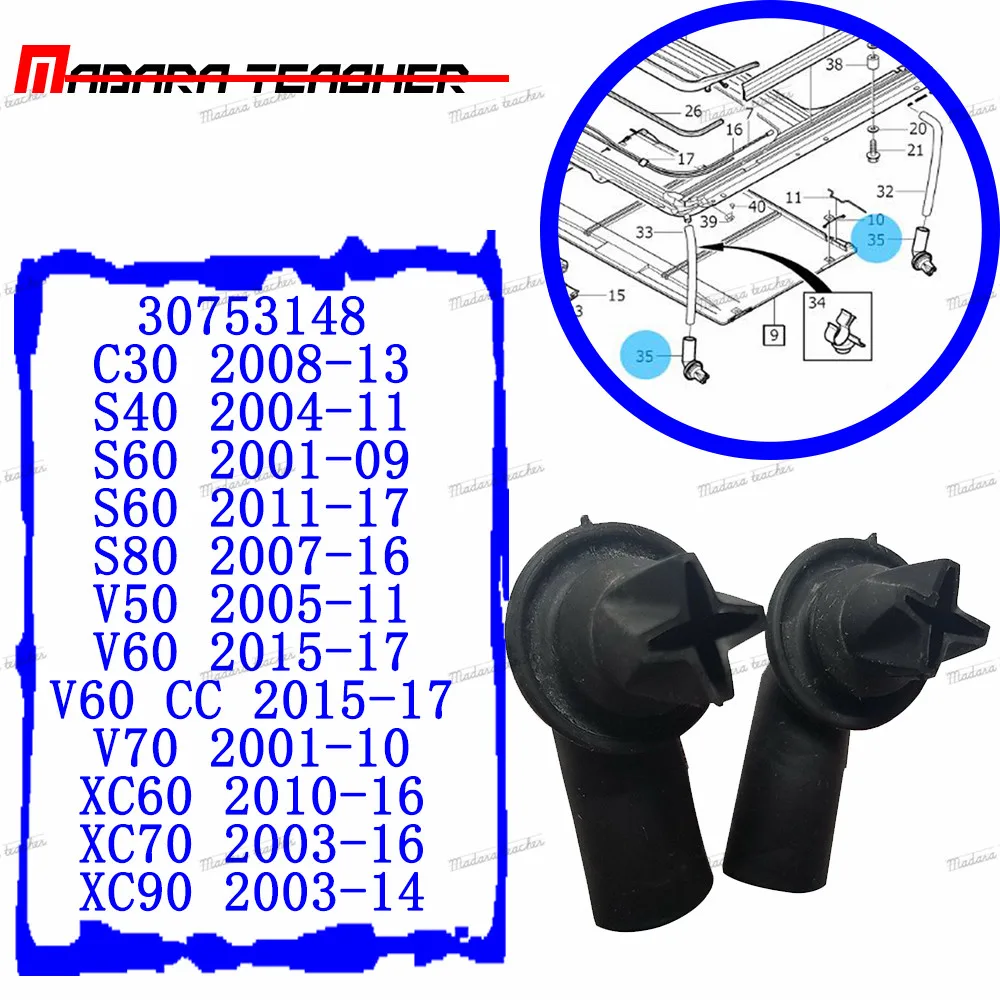

How to fix the Sunroof Drain Hose in your Volvo V50, S40, or C30. If you have a puddle or your floors are wet this is the most likely cause of that problem a... Tl-the contact owns a 2006 Volvo S40. The contact stated that the sunroof leaked water causing the electrical functions to fail. The failure occurred on numerous occasions. The vehicle was taken to a dealer where it was diagnosed that the drain hose failed. The vehicle was not repaired. The manufacturer was not made aware of the failure. Cleaning the sunroof drain holes, and talking about the significant problems that happen when these drain tubes get blockedVolvo forums US https://www.matth... Volvo Sunroof Drain Pass Through - Genuine Volvo 30753148 C30, S40, S60, S80, V70, XC60, XC70, XC90 Save for later 1 Rating Available In Stock. Price each: $24.99. Core charges are assigned to parts that have reusable components by manufacturers to encourage the return of the used units. Once you return the old part you will be refunded for.
