Engine Maniac: Honda Civic/CRX D15B1/D15B2 MPFI Swap 1. A complete intake manifold from an MPFI Engine. I recommend the D16Z6, but the D16A6, D16Y8, and D15B7 can also be used. 2. MPFI ECU. You will need a pm6, pr4, or pg7 (note: will run rich with pr4 and pg7). Make sure you replace the OBD-1 injectors with OBD-0 injectors if using a D16Z6, D16Y8, or D15B7 intake manifold. 3. MPFI Distributor TD-02. D16Y8 Intake Manifold on D16Y7 Block and Head---Gasket ... Currently running P2P ecu with non vtec fuel injectors, on d16y8 intake manifold with the idle screw turned about 180 degrees so it idles at about 650rpm. Doing this i hear a vacuum hiss from the cool air intake.

D16y7 To D16y8 Engine Swap Wiring Diagram D16Y7 with D16Y8 head will be nice for mini me swap. . D16Z6 Cylinder Head (Including distributor cap, valve cover, plugs/wires, VTEC solenoid, etc) manual in front of you because it includes detailed pictures and diagrams): 1. Remove the engine wire harness connectors and wire harness clamps.

D16y8 intake manifold diagram

B18a1 Intake Manifold Diagram This intake manifold replaces the factory unit with a higher flowing, more efficient design, to reduce air flow restrictions leading into the engine, and make more power. This is a quick write up on what's needed to install a D16Y8 intake manifold on a D16A6. Other manifold swaps will be similar in nature. Such as a D16Z6 manifold on a D15B7 etc. I need a vacuum hose routing diagram for a D16Y8 1999 ... I need a vacuum hose routing diagram for a D16Y8 1999 honda civic ex. I need to get a diagram that i can print out to help me reattach the vacuum hoses to my motor Posted by patrick sparkman on Mar 07, 2013. Want Answer 0. Clicking this will make more experts see the question and we will remind you when it gets answered. ... D16Y8 intake manifold swap - tutorial! | Honda and Acura ... 11) Use another length of 1/4" hose to run from your purge cannister to the purge solenoid on the rail, then connect the other end of the PCS to the medium sized port under the larger one on the front of the manifold. the upper one is for the PCV 3/8" hose.

D16y8 intake manifold diagram. D16y7 to D16y8 Intake Manifold Sawp - Help! | Honda and ... d16y7 Automatic ECU, d16y7 harnesses, d16y8 5 speed intake manifold + fuel rail, and either d16y7 automatic throttle body or d16y8 5 speed throttle body. 1. Will it not work since I have an DX auto transmission and the EX intake manifold is meant for an 5 speed manual? 2. Any step by step pictures to assist in the process? 3. Part 1: D16y7 to D16y8 Intake manifold swap - YouTube -D16y8 manifold and throttle body -D16y7 throttle body gasket -D15/16 intake manifold gasket -5ft 1/4 id hose -2ft vacuum hose -New pcv -New fuel filter Make sure you have a bucket of some sort to... D16Y8 Engine Specs - HCDMAG.COM The Honda D16Y8 is a 1.6L 4-cylinder VTEC engine with a single overhead cam (SOHC). Right off the production line in 1996 it had 127 hp and 107 lb-ft of torque. The engine was only produced for four years before it was replaced by the Honda D17 series engine, however it is still popular to this day. PDF 4756 - Performer X Intake Manifold for 96-00 Civic D16Y8 PERFORMER X INTAKE MANIFOLD For 1996-2000 Honda Civic EX with D16Y8 Engine Catalog #4756 INSTALLATION INSTRUCTIONS PLEASE study these instructions carefully before beginning this installation. Most installations can be accomplished with common tools and procedures. However, you should be familiar with and comfortable working on your vehicle.

D16z6 Intake Manifold Diagram - Wiring Diagram Pictures $ Guaranteed by Mon, Nov. May 09, · the large nipple on the intake manifold comes from the thermostat housing, its the "U" shaped hose with a slight bend in it in the diagram. the smaller nipple on the intake manifold also comes from the thermostat housing, though i cannot see if you have the nipple on there for that or not. D16y8 Vacuum Hose Diagram I have gotten my hands on a Canadian 99 Civic Si (D16Y8) that was have a few questions about the cylinder head and intake manifold hose routing. but in the vacuum connection diagram that I attached to this post, there. Fig. Vacuum hose routing diagram-D16Y8 engines. Click image to see an enlarged view. Fig. Honda Civic: D16Z6 vs. D16Y8 Engines - Honda-Tech Horsepower and Torque. The D16Y8 engine is a 1.6 liter, 16 valve, SOHC VTEC that produces 127 horsepower at 6,600 RPM and 107 lb-ft of torque at 5,500 RPM in stock form. The engine redlines at 6,800 RPM and has a rev limit of 7,200 RPM. In contrast, the D16Z6 VTEC produced 125 horsepower at 6,600 RPM and 106 lb-ft of torque at 5,200 RPM. D16Y8 intake manifold swap - tutorial! | Page 2 | Honda ... BAsically the bottom end of the Y7 and Y8 are that same, it's the head/intake that are different. Put the Y8 head/intake on the Y7 block and now you have sohc VTEC. I would suggest if you do that to get an OBD1-OBD2 conversion harness that will let you plug OBD1 ecu into your car, and use a P28 ecu that came from the 92-95 Civic EX & Si models.

How To: Timing Belt D16Y5, D16Y7, D16Y8 | ClubCivic.com ... Timing Belt - D16Y5, D16Y7, D16Y8 Okay, this was taken directly out of the Honda Civic ('96-'00) & CR-V ('97-'00) / Acura Integra ('94-'00) Haynes Repair Manual.This info is from Chapter 2 Part A - Single overhead cam (SOHC) engines.I am not to be held accountable for any problems or mistakes which might occur. d16y8 manifold air injection blockoff | HondaSwap.com fill in all of the top 5 holes. 1 larger one in the middle with 2 on each side. they must be filled, just fill it with some jb weld, it's like $5 at any auto parts store. make sure that it's either flat with the gasket surface or indents a little, you don't want any sticking out or the manifold won't seal tight against the head. also, be careful … d16y7 to d16y8 swap Vacuum/Coolant Hose help | Honda D ... #2 · Aug 25, 2016 One line goes from the thermostat to the iacv. The other side of the iacv goes to the back of the block. There's a larger pipe there that cool at flows through. It has a nipple sticking out of it. Attachments image_1472172834692.gif 50.4 KB Views: 13,272 Save Reply M MasonShear Registered Joined Aug 25, 2016 3 Posts D16Y8 Manifold Swap - mycomputerninja.com The diagram below shows the vacuum lines for a D16A6 with a D16Y8 manifold and B18A1 TB. Charcoal canister can even be used! Coolant Lines: All coolant lines are run the same as stock. Unless you are using the EACV from the 87 Accord, in which the coolant lines must either not be used or the EACV must be modified.

Intake manifold fitment.

Part 2: d16y7 to d16y8 Intake Manifold swap - YouTube Make sure you get the rite trottle body gasket to prevent a vacuum leak. Do not not use d16y8 injector or you will run rich. All you are swaping is the manif...

Intake Manifold

d16y8 Manifold... | Honda Civic Forums - 7thGenHonda Okay, a friend of mine has a 00 Civic EX with the d16y8 engine. He swapped a b18GSR engine into it so i grabbed his intake mani, fuel rail, ect off of him. I heard/read so many various things about it and searched about it and I've yet to come to a complete understanding of how to make it work...

D15b7 Intake Manifold Diagram

d16y8 intake manifold......TINY VACUUM PORT | ClubCivic ... d16y8 intake manifold......TINY VACUUM PORT Finnish~Racer May 26, 2010 Finnish~Racer The ONLY Finnish-Canadian Registered VIP 5+ Year Member May 26, 2010 #1 ok so down on the backside of the IM there is a tiny little vacuum port. on the honda diagram the part number is B-23-10.

My D16Y8 / D17A2 Intake Manifold Conversion Project. - Engine Mechanical / Air Induction ...

D16Y8 Intake manifold on D16A6 | Honda D Series Forum My buddy wants to put a D16Y8 intake manifold on his D16A6 ('91 Si). He already has the Y8 manifold, fuel rail, regulator and injectors. I have a couple...

Intake Manifold

D16Y8 intake manifold swap - tutorial! | Honda and Acura ... 11) Use another length of 1/4" hose to run from your purge cannister to the purge solenoid on the rail, then connect the other end of the PCS to the medium sized port under the larger one on the front of the manifold. the upper one is for the PCV 3/8" hose.

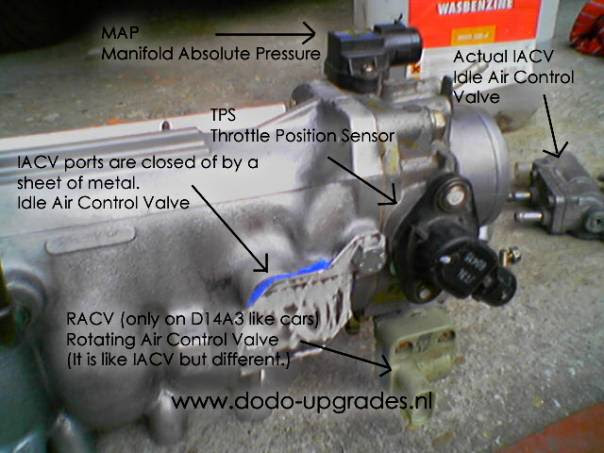

Swapping your manifold bladiebla

I need a vacuum hose routing diagram for a D16Y8 1999 ... I need a vacuum hose routing diagram for a D16Y8 1999 honda civic ex. I need to get a diagram that i can print out to help me reattach the vacuum hoses to my motor Posted by patrick sparkman on Mar 07, 2013. Want Answer 0. Clicking this will make more experts see the question and we will remind you when it gets answered. ...
