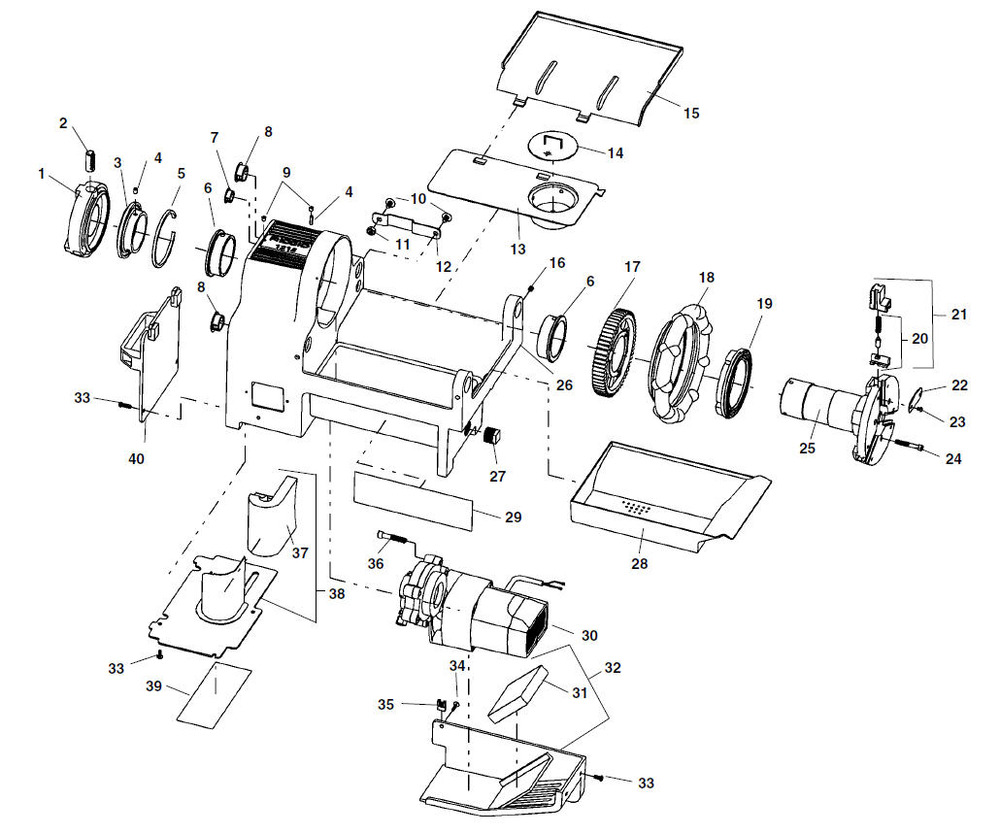

300 Power Drive Record Serial Number below and retain product serial number which is located on nameplate. Serial No. Model 300 Completepictured above including Stand, Threading Carriage, Tool Tray and Oiler. 300 Power Drives WARNING! Read this Operator’s Manual carefully before using this tool. Failure to understand and follow the contents of Parts Diagrams. Jump to a Diagram... 1. Main Drive Components 2. Carriage and Oil System 3. Motor 4. 52 RPM Electrical 120V 60Hz 5. 120V 60Hz Electrical 6. 344 Reamer for 300 Compact 7. 360 Cutter 8. B-294HD Footswitch 9.

RIDGID. Pipe and Bolt Threading Machine. 300/300A. Main Components. Early Style ... NOTE: Order parts by Catalog Number only. ... Wiring Diagram (115/230V).6 pages

Ridgid 300 parts diagram

The research team projects that the Chain Pipe Wrenches market size will grow from XXX in 2019 to XXX by 2026, at an estimated CAGR of XX. The base year considered for the study is 2019, and the market size is projected from 2020 to 2026. The prime objective of this report is to help the user understand the market in terms of its definition, segmentation, market potential, influential trends, and the challenges that the market is facing with 10 major regions and 30 major countries. Deep rese... Ridge Tool Company/Elyria, Ohio, U.S.A. 23 Power Drive 300/300A Electrical Components 9 5 8 10 6 12 13 11 Ground Screw Ref. {NOTE: Order parts by Catalog Number only. DO NOT order by Reference Number. Pipe and Bolt Threading Machine. 300 COMPACT. NOTE: Order parts by Catalog Number only. DO NOT order by Reference Number.

Ridgid 300 parts diagram. Ridgid 300 Replacement Parts List · A-1. Screw, 12 - 24 x 3/4" (6) Part # 46790. N/A · A-10. Rear Bearing Part # 45335. N/A · A-11. 300 Body Assembly (Incl. Ref. Need to fix your 300 Pipe And Bolt Threading? Use our part lists, interactive diagrams, accessories and expert repair advice to make your repairs easy. 300/300A Pipe and Bolt Threading Machine Electrical Components 8 5 8 9 6 11 12 10 Ground Screw Ref. {NOTE: Order parts by Catalog Number only. DO NOT order by Reference Number. Red Blue White White Yellow Outlet Black (Brown) White (Blue) Black Red Yellow Blue Switch White Suppressor (230V Only) Green (Green & Yellow) White Foot Switch Green ... Ridgid 300 Replacement Parts List. A-1. Screw, 12 - 24 x 3/4" (6) Part # 46790. N/A. A-10. Rear Bearing Part # 45335. N/A. A-11. 300 Body Assembly (Incl. Ref. No. 10, 11, 12, ...

NOTE: Order parts by Catalog Number only. ... Wiring Diagram - Variations. 115V – 60Hz. 100V – 50/60Hz ... 300 Body Assembly (Incl. Ref. No. 10, 11, 12, 13,.171 pages 1. Main Components 2. 311 Carriage 3. Electrical Components 4. 300 Motors 5. 300A Motors 6. 341 Reamer 7. 360 Cutter 8. 330 Oil Pan 9. 1206 Stand 10. 1452 Tool Tray 11. 309 Oil Spout 12. 32 Transporter 13. B-294 Footswitch 14. Pipe and Bolt Threading Machine. 300 COMPACT. NOTE: Order parts by Catalog Number only. DO NOT order by Reference Number. Ridge Tool Company/Elyria, Ohio, U.S.A. 23 Power Drive 300/300A Electrical Components 9 5 8 10 6 12 13 11 Ground Screw Ref. {NOTE: Order parts by Catalog Number only. DO NOT order by Reference Number.
