D8 Tanabe Sugano Diagram Lecture 4 May Tanabe Sugano Diagrams A Tanabe-Sugano (TS) diagram plots the energy dependence of the various ligand field states (or terms) with field strength. The strength of the ligand field is defined by Dq, which is related to the octahedral crystal field splitting by 10Dq = ∆o. The energy of the state is given by E. Tanabe Sugano Diagram D6 - schematron.org Lecture 4 May Tanabe Sugano Diagrams A Tanabe-Sugano (TS) diagram plots the energy dependence of the various ligand field states (or terms) with field strength. The strength of the ligand field is defined by Dq, which is related to the octahedral crystal field splitting by 10Dq = ∆o.
PDF Dr. Sanyucta Kumari Assistant Professor (Chemistry) MLT College, Saharsa Tanabe-Sugano diagrams are used in coordination chemistry to predict absorptions in the UV, visible and IR electromagnetic spectrum of coordination compounds. The results from a Tanabe-Sugano diagram analysis of a metal complex can also be compared to experimental spectroscopic data. They are qualitatively useful and can be used to ...
Tanabe sugano diagram calculator

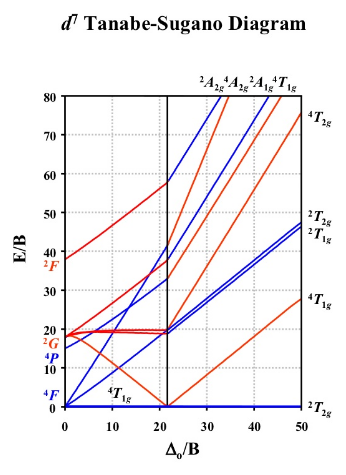

Using Tanabe-Sugano diagram calculate Δο and B for | Chegg.com Question: Using Tanabe-Sugano diagram calculate Δο and B for the complex VC13(CH3CN)3, which has absorption bands at 694 and 467 nmm . This question hasn't been solved yet Ask an expert Ask an expert Ask an expert done loading. Please show the solution in detail and explain it. Tanabe sugano diagram - SlideShare Tanabe-Sugano diagram for d2 octahedral complexes 2/26/2019 12 13. Advantages over Orgel diagrams • Tanabe-Sugano diagrams can be used for both high spin and low spin complexes, unlike Orgel diagrams which apply only to high spin complexes. PDF Coordination Chemistry III: Tanabe-Sugano Diagrams and Charge Transfer d7Tanabe-Sugano Diagram E / B ∆o/ B 4F 2G 2Eg 2T1g 2A1g 2T2g 4P 4A2g 4T1g (4P) 4T2g 4T1g (4F) small ∆o High Spin large ∆o Low Spin Complexes with d4-d7 electron counts are special •at small values of ∆o/B the diagram looks similar to the d2diagram •at larger values of ∆o/B, there is a break in the diagram leading to a new ground ...
Tanabe sugano diagram calculator. D7 Tanabe Sugano Diagram - schematron.org A Tanabe-Sugano diagram of the spin-allowed and some forbidden transitions for high spin octahedral d 7 complexes is given below. d2Tanabe-Sugano Diagram E / B ∆o/ B 3F 3P 3T 1g (3P) 3A 1g 3T 2g (3F) 3T 1g ~15B ~∆o ~∆o E1 E2 E3 E is the energy of the excited state relative to the ground state B is the Racah parameter for e--e ... Calculations using Tanabe-Sugano diagrams From the diagram above these are 28.78, 41.67 and 59.68 respectively. Knowing the values of ν1, ν2 and ν3, we can now calculate the value of B. Since ν1/B=28.78 and ν1 is equal to 17,400 cm -1, then B=ν1/28.78 = 17400/28.78 or B=604.5cm -1 Then it is possible to calculate the value of Δ. app.marketingtracer.com › user › registerOnline Marketing Dashboard MarketingTracer SEO Dashboard, created for webmasters and agencies. Manage and improve your online marketing. PDF This file has been cleaned of potential threats. If you confirm ... - UM In the Tanabe-Sugano diagrams, the energy axis has units of E/B. The xaxis has - units of "o /B. Each TanabeSugano diagram is given for only one specific - B/C ratio (the best value). For example, the TanabeSugano diagram for d- 3 complexes is given for C=4.5 B. non-crossing rule:
PDF Calculation of Dq, B and β Parameters - Dalal Institute ocan be calculated as: 8 Dq = 0.8 Δo= 17500 cm−1 ∆o= 17500 cm−1 0.8 Δo= 10 Dq = 21875 cm−1 However, this is just the approximation and a more precise and refined calculation should be carried out using the Tanabe-Sugano diagram. From the average value of the Racah parameter, the ligand field splitting parameter can be found as follows. ∆o B =31; ∆o essaysassignment.comEssays Assignment - One assignment at a time, we will help ... Simply kick back and relax. Essays Assignment will take good care of your essays and research papers, while you’re enjoying your day. Transition Energy from A2g to T1gP Calculator Transition Energy from A2g to T1gP calculator uses Transition Energy from A2g to T1gP = (6/5* Energy Difference )+(15* Racah Parameter )+ Configuration Interaction to calculate the Transition Energy from A2g to T1gP, Transition Energy from A2g to T1gP is the energy of transition from A2g to T1gP in orgel Diagram. ... It can also be calculated ... Teaching Tanabe-Sugano Diagrams | VIPEr It is helpful to have available for students a complete set of T-S diagrams, either from your textbook or photocopied. Time Required 25-30 minutes as In-class exercise Evaluation Evaluation Methods As an in-class exercise, this activity is evaluated based on the quality of the discussion that is generated.
Transition Energy from T1g to T1gP Calculator The Transition Energy from T1g to T1gP formula is defined as the energy of transition from T1g to T1gP in orgel Diagram. It can also be calculated from Tanabe Sugano Diagram is calculated using Transition Energy from T1g to T1gP = (3/5* Energy Difference)+(15* Racah Parameter)+(2* Configuration Interaction).To calculate Transition Energy from T1g to T1gP, you need Energy Difference (Δ), Racah ... courseworkhero.co.ukCoursework Hero - We provide solutions to students Please Use Our Service If You’re: Wishing for a unique insight into a subject matter for your subsequent individual research; Looking to expand your knowledge on a particular subject matter; PDF d Tanabe-Sugano Diagram - Oliver Research Group Title: Microsoft PowerPoint - handout6b Author: Alan Jircitano Created Date: 11/22/2004 11:06:49 PM Solved Use Tanabe-Sugano diagrams to calculate Ao the | Chegg.com Transcribed image text: Use Tanabe-Sugano diagrams to calculate Ao the following a. [Cr(C204)3]3 has three absorption bands at 23,600 cm1, 17,400 cm1, and a third well into the ultraviolet. b. [TI(NCS)G]3 has an asymmetric, slightly split band at 18,400 cm1. (Why might the band be split?)
