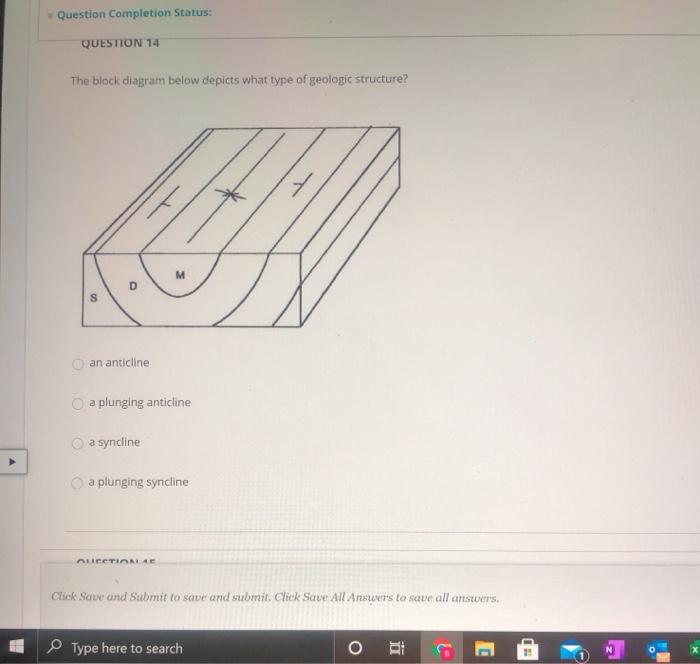

Basin Anticline Plunging syncline Monocline Question 5 1 pts What type of structure does block diagram e represent? Oblique fault Normal fault С ООО Left-lateral strik-slip fault Right-lateral strike-slip fault D Question 6 1 pts What type of structure does block diagram F represent? A plunging fold is a fold that is tilted downwards in space, parallel to the fold hinge plane. Figure 26. Plunging anticline (left) and plunging syncline (right). The interactive diagrams are linked below. Interactive SketchUp diagram of a plunging anticline: Interactive SketchUp diagram of a plunging syncline:

Remember that a geologic map will be seen in map view, as we learned about earlier with the block diagrams. Geologists use information about rocks that are exposed to visualize the unseen rocks beneath the surface, enabling them to complete the cross-sectional views we observed in the blocks. ... Plunging anticlines plunge towards the closed ...

Plunging anticline block diagram

Plunging anticline block diagram

3.2 Faulted Fold These models demonstrate another aspect of the ambiguities that may arise when interpreting folds. In each model a single fault cuts through the nose of a plunging anticline, producing offset on one side of the fold but not on the other. Jun 19, 2020 — Viewing the upper model slice at an angle provides a “block diagram” perspective and shows one end of the doubly-plunging structure on the ... A block diagram of an anticline. The numbers represent the relative ages of the map units (lower numbers are older). Strike and dip symbols represent the orientation of the map units. A structure symbol is shown along the axial trace. Notice how non-plunging folds like this one have straight, symmetrical outcrop patterns.

Plunging anticline block diagram. Anticline A wooden block has the top rounded so that the top surface is parallel to the bedding in the anticline. It is cut through to show the outcrop pattern after erosion. This can also be done with a plunging anticline. Faults Painted blocks to show the effects of normal, reverse, thrust and wrench faulting on outcrop patterns, Moving faults In block diagrams like those shown below, the top of the block is the horizontal surface of the earth, the map view. ... In map view, a plunging anticline makes a U-shaped or V-shaped pattern that points, or closes, in the direction of plunge. A cross-section at a right angle to the axis of a plunging anticline looks the same as an anticline. A cross-section across the axis of a plunging anticline looks the same as a cross-section of a non-plunging anticline. However, a cross-section parallel to the axis, such as the right-hand sides of the two block diagrams above, shows the beds dipping downward in the direction the fold is plunging. 1.3 Folds on Block Diagrams Figure 6 shows a schematic diagram of an anticline with key components labeled. First, observe that the anticline is symmetrical; both limbs dip the same amount, but in opposite directions. In a way, you can consider fold limbs to be two sets of inclined strata which dip in different.

Typically, geologists will use block diagrams to depict structures of the Earth. Note the different ways that you can view a block diagram. ... In a plunging anticline, the oldest strata can be found at the center of the V, and the V points in the direction of the plunge of the fold axis. Block diagram of plunging anticline. #anticline #geologic_structure #Geology We have converted your account to an Organization! You can now invite others to collaborate on your content. Figure 8.20 | A block diagram of an anticline and syncline. The top of the block represents map view and the side of the block is a cross-section view. Determine the strike and dip symbols that should appear in the ovals. Source: Randa Harris (2015) CC BY-SA 3.0. view source. On the diagram shown a. block X is the footwall. b. block X is the hanging wall. c. the displacement of layer B shows this is a thrust fault. ... c. an anticline plunging toward the north. d. a syncline plunging toward the south.

Diagram B: anticline Diagram F: plunging anticline Diagram C: oblique slip fault Diagram G: basin Diagram D: plunging syncline Diagram H: syncline. ... Based on the inf ormatio n in this and previous lab s, match the block diagr ams below to . the name of the st ructure. Diagr am A: rev er se f ault Diagr am E: left la ter al str ik e slip. f ault. maps, cross-sectional diagrams, block diagrams, aerial photographs, and satellite images, as appropriate: • Normal, reverse, and lateral faults • Synclines and anticlines, both non-plunging and plunging • The axis of a fold. State the direction of plunge where relevant. Draw block diagrams to illustrate geological structures. • Non‐plunging folds have straight contact lines in the map view (horizontal) surface. • Vertical sides of the block diagram perpendicular to the axial traces of folds may contain curved contact lines. Axial traces of folds Anticline symbol Syncline symbol Block diagrams are illustrated with respect to relative tectonic uplift rate ... of the rivers on crossing the anticlines, not near to their plunge areas, ...

Plunging and non-plunging anticlines and synclines can be represented in 3D block diagrams to show how the folded strata behave beneath the surface. Domes - a circular anticline (oldest beds in the core, beds dip away from the core). Basins - a circular syncline (youngest beds in the core, beds dip into the core).

This ANTICLINE is plunging toward the top of the picture, therefore, it is a PLUNGING ANTICLINE! Folding produced by fault action typically produces angular and/or box-folds Notice the affect of differential weathering on the joints in the background on the left side of the image.

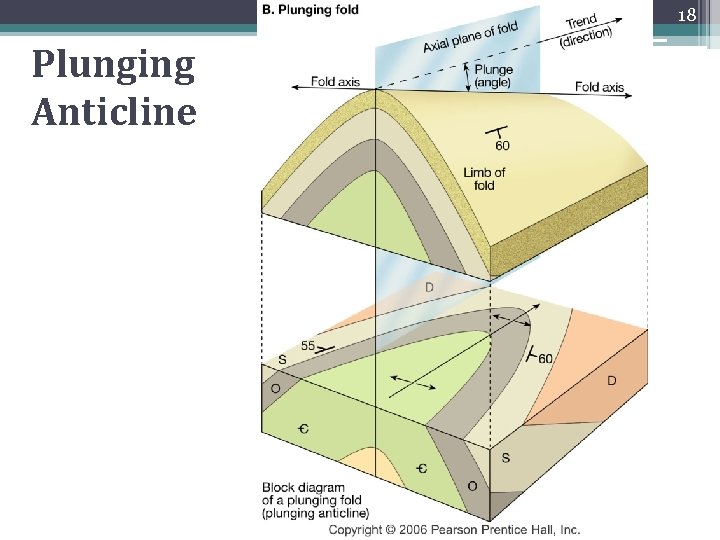

A plunging anticline or a plunging syncline is one that has its axis tilted from the horizontal so that the fold is plunging into the earth along its length. Plunge direction is the direction in which the axis of the fold tilts down into the earth. In map view, a plunging anticline makes a U-shaped or V-shaped pattern that points, or closes, in the direction of plunge.

Block diagram of an Anticline and Syncline. recognise a variety of geological structures, especially faults and plunging or The block diagrams below show that on a geological map, synclines and. Anticlines and Synclines; Plunging Anticlines and Synclines; Basins and Domes. What are anticline block diagram syncline block diagram.

Block diagram of multiple non-plunging folds. #anticline #geologic_structure #Geology #syncline We have converted your account to an Organization! You can now invite others to collaborate on your content.

Plunging Syncline Block Diagram. The three broad classes of folds are (1) anticlines, (2) synclines and (3) Figure 4: Schematic diagrams illustrating horizontal and plunging anticlines. stream cut. A block diagram is a Block Diagrams & Nomenclature Plunging synclines plunge in the direction the "V" opens. Plunging anticlines plunge in the.

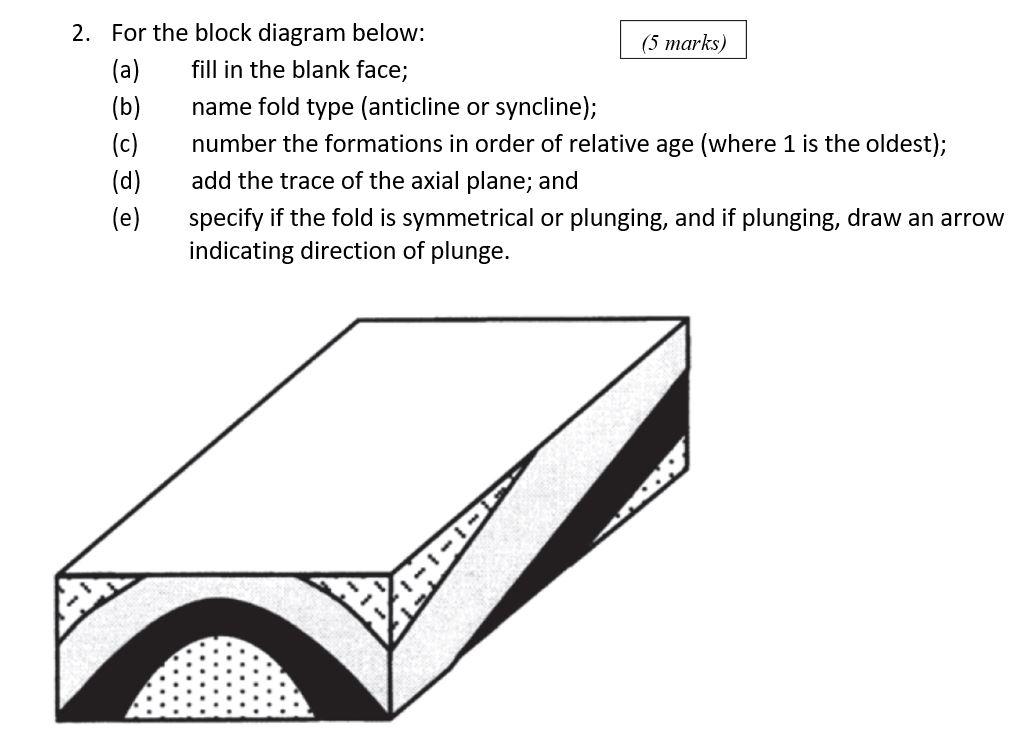

Transcribed image text: 4) Examine the block diagram of the anticline (A) and the syncline (B). Draw fold axis on the top surface (map view) of each diagram. In both these diagrams, state the relative age (younger, older etc.) of the rocks in the hinge area (fold axis) compared to the flanks (limbs).

An anticline that plunges In opposite directions is a doubly plunging anticline, and a syncline that plunges in opposite directions is a doubly plunging syncline. Variations of doubly plunging folds arc the structural dome and structural basin, as shown in figure 5.10. The outcrop patterns of these two structures arc more or less concentric ...

In map view, a plunging anticline makes a U-shaped or V-shaped pattern that points, or closes, in the direction of plunge. A cross-section at a right angle to ...

For the block diagrams below identify the fold using all relevant fold descriptors (note the letter 'A' is the oldest rock and 'D' is the youngest). A A B B C C D D ... Plunging, symmetrical anticline igneous intrusion Anticline (monocline) Normal Fault DUCTILE BRITTLE. Created Date:

A block diagram is a combination of those two representations and gives a 3-D view of formations and contacts. It looks like a block, and shows a map view ... Plunging anticlines plunge in the direction that the "V" closes. Basins and domes exhibit circular structures in map view. You can think of a

A plunging anticline has a hinge that is not parallel to the earth's surface. All anticlines and synclines have some degree of plunge. Periclinal folds are a ...

1. Upright fold: Fold layers into an upright, vertical anticline. Slice the top to make it flat topography; slice through the sides with vertical planes to create a block model. Orient your model so that the hinge line trends E-W; vertical axial plane strikes E-W. Sketch the block diagram.

Block C BLOCK C 1. Use the Strike and dip symbols to help you identify various features/aspects of this fold. 2. Is this a plunging fold? 3. Identify the direction of plunge and the approximate amount of plunge of the fold axis. 4. Identify this fold BE SPECIFIC! BLOCK D 1.

Axis of an anticline ... Axis of a plunging anticline Cenozoic Cretaceous Jurassic Triassic Permian Carboniferous Devonian Silurian Ordovician Cambrian Precambrian C Cz K J Tr P D S O 36. BLOCK A 1) Complete the map portion of this block diagram. ... Each of the perspective blank block diagrams below is accompanied by a description of a

A block diagram of an anticline. The numbers represent the relative ages of the map units (lower numbers are older). Strike and dip symbols represent the orientation of the map units. A structure symbol is shown along the axial trace. Notice how non-plunging folds like this one have straight, symmetrical outcrop patterns.

Jun 19, 2020 — Viewing the upper model slice at an angle provides a “block diagram” perspective and shows one end of the doubly-plunging structure on the ...

3.2 Faulted Fold These models demonstrate another aspect of the ambiguities that may arise when interpreting folds. In each model a single fault cuts through the nose of a plunging anticline, producing offset on one side of the fold but not on the other.
