Positive ground wiring diagram

Positive ground simplified - bugeyeguy.com Every battery has a larger positive terminal. You can see in the photos below that the positive terminal is slightly larger. So in the photo above, the battery above is wired for negatve ground, with the smaller terminal on the right wired to the firewall for ground and the fatter post wired to the starter solenoid. Tractor 6 Volt Positive Ground Wiring Diagram For Your Needs 6 Volt Positive Ground Voltage Regulator Wiring Diagram Database Vital Tips for Safe Electrical Repairs 1. Test for Energy The best method to prevent electric shock is to CONSTANTLY test wires and devices for power before focusing on them or near them. Simply shutting away from the power isn't good enough. Ford 6 Volt Positive Ground Wiring Diagram Gmc Truck Radio Wire inside ... To see just about all photographs within 6 Volt Positive Ground Wiring Diagram photos gallery remember to comply with this particular hyperlink . 6 Volt Positive Ground Wiring Diagram intended for Present Residence Images : Ford 6 Volt Positive Ground Wiring Diagram Gmc Truck Radio Wire inside 6 Volt Positive Ground Wiring Diagram Wiring Diagram

Positive ground wiring diagram. PDF Positive Ground Relay Wiring Schematic - ABI Attachments The Positive Ground Relay System works in conjunction with the ATV Side Wiring Harness which comes with the Trailer. Please check your Workman XL Owner's Manual for more information on connecting the ATV Side Wiring Harness. For additional help with the setup of your Positive Ground Relay System please contact our Customer Service Ignition Coil Wiring Diagram Positive Earth Accuspark positive earth ing instructions technical 1929 a 6v to 12v wiring diagram help the h m b for 123 ignition alfa romeo forums old britts simplified diagrams electronic crane allison xr700 how wire flathead does an coil have be grounded quora vintage bike magazine troubleshoot boyer 1965 t120 custom no battery triumph rat motorcycle thesamba com bay ... positive ground wiring diagram wiring 520 coil deere diagram john pertronix jun. Suzuki 250 Quadrunner Wiring Diagram Collection - Wiring Diagram Sample faceitsalon.com. wiring diagram suzuki 250 quadrunner atv quad wire source. 1941 Plymouth Coupe Wiring Help - Plymouth - Antique Automobile Club Of forums.aaca.org. wiring 1941 please explain postive ground to me - Technical IH Talk - Red Power ... Dax - A positive ground works exactly the same as negative ground. The ONLY difference is current in a positive ground system flows the opposite direction from current a negative ground system. Think of left hand vs. right hand threads - both accomplish the same thing only one tightens the opposite direction from the other.

6 volt positive ground wiring diagram Tractor volt wiring battery ... We have 8 Pics about Bob Johnstones Studebaker Resource Website (Wiring Diagram, Pertronix 6 like [EK_4087] Ford Tractor 6 Volt Positive Ground Wiring Diagram On 8N Coil, 6 Volt Positive Ground Wiring Diagram | Fuse Box And Wiring Diagram and also Wiring Diagram For 6v Tractor Voltage Regulator Positive Ground. Here it is: 12v positive ground wiring question - Farmall Cub It is a good practice to never solely rely on the color of the wire to determine whether positive or negative ground. Verify with the + or - physically marked on the battery case near the post and where the wire attached to each goes. Also the positive post is a little larger than the negative post on most batteries. 6 Volt Positive Ground Generator Wiring Diagram Database Farmall Cub 6 Volt Positive Ground Wiring Diagram Collection Six Tips for power wiring 1. Power Tests Always check & test wire connections and devices with regard to power inside typically the box you are usually working in to prevent electric shock prior to working on all of them. Pertronix Positive Ground Wiring - TTalk For Positive Ground Cars The wiring diagram shown below was obtained from Pertronix to show the proper hookup for a Pertronix Igniter in a car wired for positive ground, or earth if you prefer. It goes without saying that this is valid only for cars without ballast resistors, viz., our T-series cars. Correspondence from an engineer at Pertronix

6 volt positive ground wiring - Microsoft Positive ground tractor wiring diagram regulator voltage 6v solenoid start volt 8n generator apply others super. Wiring diagram for 6v tractor voltage regulator positive ground. Power starter electrical diagram wiring ground plug receptacle cessna avionics system aircraft g1000 external motors maintenance issue relay 6 volt positive ground wiring Technical need help wiring flathead, positive ground? Oh by the way, once you get it figured out with positive ground, the wire from the ign switch your to the Neg. terminal of the coil. The Pos. terminal gets wired to the points terminal on the distributor. The amp gauge also is sensitive. If it shows a discharge when running, swap the leads. plym_46, Sep 2, 2014. Positive Ground Cars - Restore An Old Car When charging positive-ground cars, put the positive cable on the ground and the negative on the battery or starter lug. If you want to jump start a 6 volt positive ground car, the best way is to use another 6 volt battery of either polarity. Positive goes to positive and negative goes to negative. This makes a parallel circuit. 12 Volt Positive Ground - Allis Chalmers Forum - Yesterday's Tractors Anyone know what year AC switched to negative ground. Wiring diagrams for the early D15 showed 12 volt positive. D10/D12 manuals show 6 volt positive but I know that is wrong for the later ones (the three 61s I have 15, 17, and 12 appear to have been factory 12-volt positive ground).

Old Britts, Simplified Wiring Diagrams

positive ground wiring diagram Wiring diagram norton ground farmall ignition schematic positive commando cub electronic negative wd 1974 diagrams boyer arc power britts jockey. Vfd inventables 1671 2535. Bmw trunk diagram wiring light f10 harness wire lights number connector sedan bimmerfest forums e39 line lid working problems electrical

How To Read Car Wiring Diagrams (Short Beginners Version ...

6v positive ground wiring diagram | Craig Engine Connect an insulated AWG 20 copper stranded wire from the positive coil terminal to. 6 Volt Positive Ground Wiring Diagram wiring diagram is a simplified conventional pictorial representation of an electrical circuit. Take a look at the diagram below. Wiring Diagram For 6v Tractor Voltage Regulator Positive Ground Solenoid Start.

Model T Ford Forum: Negative or positive ground

6 Volt Positive Ground Wiring Diagram | Fuse Box And Wiring Diagram Description : Wiring Diagram For Ford 9N - 2N - 8N - Readingrat for 6 Volt Positive Ground Wiring Diagram, image size 1200 X 900 px, and to view image details please click the image. Description : Getting Grounded The Right Way in 6 Volt Positive Ground Wiring Diagram, image size 1250 X 649 px, and to view image details please click the image.

Function Test for Pertronix Positive Ground Module

positive ground | Antique Tractors Forum Yes, your 1946 John Deere A has a positive ground. Take a look at the diagram below. So does that mean the pos. cable off the battery go to ground and the neg. go to the starter? Yes, note the ground cable (Key 12) is connected to the positive (+) terminal on the battery and the negative cable (Key 1) goes to the starting motor.

6 volt positive ground battery ignition schematic? - Farmall Cub

Wiring Diagram For 6v Tractor Voltage Regulator Positive Ground ... Here is a diagram for the regulator equipped (three position Farmall with a MAG. You will need to change the starting solenoid over to a 12v solenoid. Usually 6v positive ground starters work just fine being switched over to 12v negative ground. To wire it in, unhook the wires from the voltage regulator, cut the ends and.

Tractor « airstreamflyfish.com

How to Wire A Positive Ground One Wire Alternator - Farmall ... So here it is; Battery (+) to ground on tractor. Negative (-) to starter switch (pull starter) to ammeter. From ammeter to ignition switch, From ignition switch to distributor. (The distributor has two (2) wires). This is the 1st wire. 2nd wire from distributor goes to (-) on coil. (+) on coil goes to ground on tractor.

6-Volt Positive Modified Wiring Diagram

How do I wire a turn signal switch for a positive ground vehicle? So, in relation to the wiring for the switch it should not require any changes, since it is just a matter of continuity. The issue is going to be in the Flasher Relay. You will need to find a Flasher Relay that will work on 6V and on Positive ground. You can view our wiring diagram for more detail. Installation Questions Updated Sep 11, 2017

12v positive ground wiring question - Farmall Cub

Ford 6 Volt Positive Ground Wiring Diagram - Wiring Diagram Schematic Installing A New Wiring Harness. Golden jubilee jubilee naa 1953 54 this kit makes a simple 1 wire hookup for negative ground systems instruction sheet included on how to switch from positive ground to negative ground includes 63 amp 1 wire alternator and mounting brackets includes. 8n ford tractor wiring diagram 6 volt.

COIL POLARITY

Ignition Coil Wiring Diagram Positive Earth - Wiring Diagram Technical 1929 A 6v To 12v Wiring Diagram Help The H M B. Electronic Ignition Crane Allison Xr700. Allis C Positive Ground Wiring Diagram Allischalmers Forum. Electrical Sunbeam R. Te20 Generator And Alternator Wiring Diagrams By Heads Tractors Issuu. 1950 Farmall Cub. Installing A Kill On Electronic Ignition Jrc Engineering Inc. Ignition System.

8n Ford Tractor Wiring Diagram | Camionetas ford, Camionetas ...

Pertronix Wiring Diagram Pertronix Wiring Diagram Pertronix Igniter Wiring. For Positive Ground Cars. The wiring diagram shown below was obtained from Pertronix to show the proper hookup for a Pertronix. (product) that the Ignitor, magnet assembly and wiring (components) shall be free from defects in material and WIRING DIAGRAM. WITH RESISTOR WIRE OR.

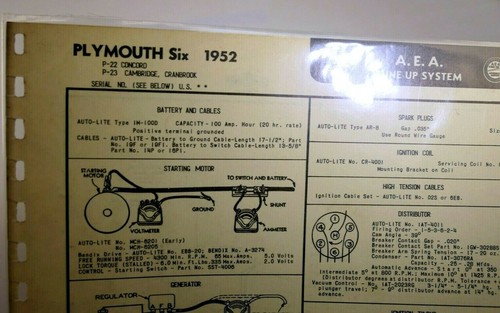

Plymouth Six 1952 AEA Tune up System Specification Chart Sheet wiring diagram

Help with battery and 6 volt positive grounding Help with battery and 6 volt positive grounding - P15-D24 Forum - P15-D24.com and Pilot-house.com. By ca95dream, March 21, 2010 in P15-D24 Forum. Share. Followers 0.

6 volt coil question | My Tractor Forum

Ford 6 Volt Positive Ground Wiring Diagram Gmc Truck Radio Wire inside ... To see just about all photographs within 6 Volt Positive Ground Wiring Diagram photos gallery remember to comply with this particular hyperlink . 6 Volt Positive Ground Wiring Diagram intended for Present Residence Images : Ford 6 Volt Positive Ground Wiring Diagram Gmc Truck Radio Wire inside 6 Volt Positive Ground Wiring Diagram Wiring Diagram

Ammeter not showing charge on 6 volt system - Farmall Cub

Tractor 6 Volt Positive Ground Wiring Diagram For Your Needs 6 Volt Positive Ground Voltage Regulator Wiring Diagram Database Vital Tips for Safe Electrical Repairs 1. Test for Energy The best method to prevent electric shock is to CONSTANTLY test wires and devices for power before focusing on them or near them. Simply shutting away from the power isn't good enough.
