39 draw the free-body diagram for the truss. a is a pin and b is a rocker.

Draw the free-body diagram for the following problems. a) The truss in ... Draw the free-body diagram for the following problems. a) The truss in Prob. 5-15 b) The beam in Prob. 5-16 c) The man and load in Prob. 5-17 d) The beam in Prob. 5-18 ...more ...more Drawing Free-Body Diagrams - Physics Classroom A free-body diagram is a special example of the vector diagrams that were discussed in an earlier unit. These diagrams will be used throughout our study of physics. The size of the arrow in a free-body diagram reflects the magnitude of the force. The direction of the arrow shows the direction that the force is acting.

Example 3 - Aerospace Engineering We first draw the free-body diagram of the structure as a single unit by removing the supports at A and E and showing the corresponding reactions with assumed senses. It is also possible to go one step further, and separate the two parts in contact at B. the roller is perpendicular to the beam, there will be a normal (vertical)

Draw the free-body diagram for the truss. a is a pin and b is a rocker.

PDF Rigid Body Equilibrium There are a number of ways to draw pin connections Here is a pin connecting two members . 19 37 Free Body Diagrams Wednesday, October 3, 2012 New Support Conditions Pin Connection ! Another way Here is a pin support 38 Free Body Diagrams Wednesday, October 3, 2012 New Support Conditions Pin Connection ! On a pin, we know that there is an x and ... Truss Structures. Part2: Free Body Diagrams. - YouTube Second lecture in a series on analyzing truss structures. This video walks through computing the internal member forces and how to construct the free body d... Chapter 05 [Solutions] (Hibbeler) - StuDocu Draw the free-body diagram of the bar, which has a negligible thickness and smooth points of contact at A,B, and C. Explain the significance of each force on the diagram. ... Determine the horizontal and vertical components of reaction at the pin Aand the reaction of the rocker Bon the beam. SOLUTION. Equations of Equilibrium:From the free-body ...

Draw the free-body diagram for the truss. a is a pin and b is a rocker.. › fintech › cfpb-funding-fintechU.S. appeals court says CFPB funding is unconstitutional ... Oct 20, 2022 · A legal battle is just one more factor casting doubt on the consumer finance regulator’s rulings. Draw the free-body diagram of the beam, which is pin-connected at A and ... Draw the free-body diagram of the beam, which is pin-connected at and rocker-supported at . Given: = = = = = Sign In. Search. Subscribe $4.99/month. Un-lock Verified Step-by-Step Experts Answers. Textbooks & Solution Manuals. Find the Source, Textbook, Solution Manual that you are looking for in 1 click. [Solved] Draw the free-body diagram of the truss t | SolutionInn Draw the free-body diagram of the truss that is supported by the cable AB and pin C. Explain the significance of each force acting on the diagram. (SeeFig) Transcribed Image Text: 30 2 m 3 kN 4 kN - — эm. 2 m 2 m 2 m. Answer . Analyzing a Simple Truss by the Method of Joints - Instructables Based on the simple truss used in the last step, this joint would be either A or B. The choice of this joint is up to you, as long as it only connects two members. We will choose joint B. After choosing your joint, you will draw another free-body diagram. This free body diagram will correspond to the joint alone and not the entire truss.

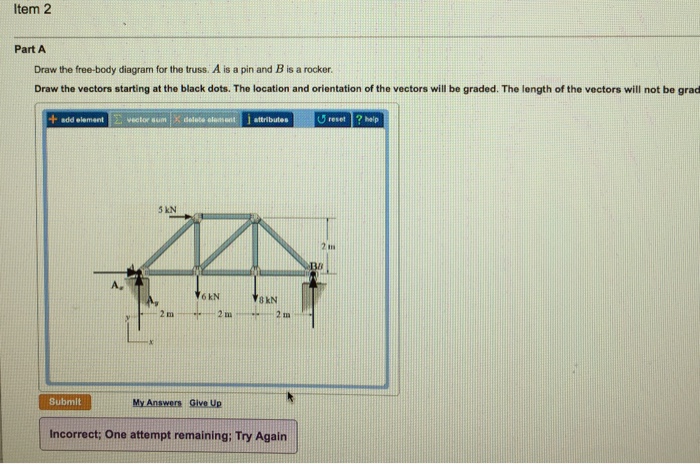

› createJoin LiveJournal Password requirements: 6 to 30 characters long; ASCII characters only (characters found on a standard US keyboard); must contain at least 4 different symbols; Statics: Free Body Diagrams The basic process for drawing a free body diagrams is Select and isolate an object. The "free-body" in free-body diagram means that the body to be analyzed must be free from the supports that are physically holding it in place Simply sketch a quick outline of the object as if it is floating in space disconnected from everything. Draw the free body diagram for the truss. A is a pin and B is a rocker ... Part A The truss is supported by a pin at A and a roller at B. (Figure 1) Draw the free-body diagram of the truss. Draw the vectors starting at the black dots. The location and... Lecture 61: Analysis of Truss: How to draw the free body diagram? This video lecture demonstrates the underlying principle of truss. As we all know, truss members are commonly used to transfer applied forces/loads to the ba...

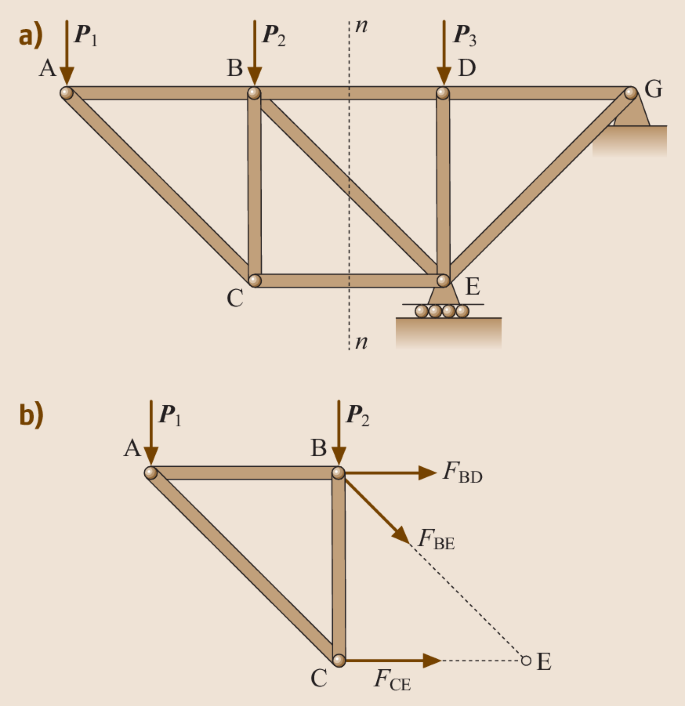

Truss Analysis Tutorial | Method of Joints and Sections - DegreeTutors.com Truss Analysis using the Method of Joints and Method of Sections. In this tutorial we're going to focus on trusses, also known as pin-jointed structures. We'll discuss their strengths and the common methods of manual truss analysis. We're going to start at the very beginning by briefly considering what exactly a truss is - but we'll ... Free Body Diagram - Definition, Examples, Solved Problems, FAQs - BYJUS In the section, we will explain the step-by-step procedure of drawing a free body diagram: 1. Identify the Contact Forces To identify the forces acting on the body, draw an outline of the object with dotted lines as shown in the figure. Make sure to draw a dot when something touches the object. Chapter 05 [Solutions] (Hibbeler) - StuDocu Draw the free-body diagram of the bar, which has a negligible thickness and smooth points of contact at A,B, and C. Explain the significance of each force on the diagram. ... Determine the horizontal and vertical components of reaction at the pin Aand the reaction of the rocker Bon the beam. SOLUTION. Equations of Equilibrium:From the free-body ... Truss Structures. Part2: Free Body Diagrams. - YouTube Second lecture in a series on analyzing truss structures. This video walks through computing the internal member forces and how to construct the free body d...
