One version of the thermodynamic diagram is the skew-T log-p diagram, or "skew-T" for short, so named because one of the primary axes of the graph (temperature) is skewed clockwise by 45°. (Another is the Stuve diagram, shown in our textbook. It is simpler one to read but less useful meteorologically.) Construction of a Skew-T Diagram Stuve Diagrams. Stuve Diagrams are one type of thermodynamic diagram used to represent or plot atmospheric data as recorded by weather balloons in their ascent through the atmosphere. The data the balloons record are called soundings. To see how to make your own Stuve diagram try following the sounding exercises.

These include the tephigram, Skew-T Log P (known as Skew-T for short), Stuve, and pseudoadiabatic diagrams. The Stuve and pseudoadiabatic diagrams look very similar to the emagram that was explained here. So these should be relatively easy for you to use too. a) The tephigram and skew-T look similar to each other, but not to the emagram.

How to read a stuve diagram

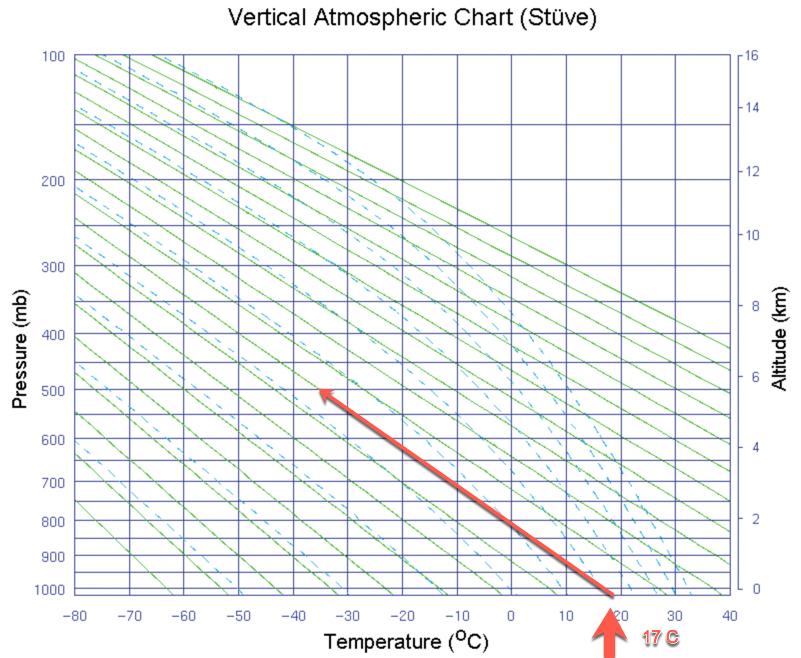

Stuve Diagrams are one type of thermodynamic diagram used to then the saturation mixing ratio can be read directly from the chart.For completeness, the dewpoint temperature of the parcel (Td) can be plotted upon the diagram at the same pressure level. 3) Dry adiabats. The straight, solid, green lines sloping upward to the left on the diagram ... And a blank stuve diagram: bstuve1.gif. While you can likely complete the data sheet on your computer, you might need to print out the stuve diagram to complete the plotting part. Print the blank stuve diagram. Plot the temperature and dewpoint data on the chart. Scan or photograph and upload with your submission. Stuve diagrams show the relationship between Air Temperature and Dew Point Temperature from the surface to about 55,000ft.

How to read a stuve diagram. About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy & Safety How YouTube works Test new features Press Copyright Contact us Creators ... Weather and Climate PHYS 189 NAME: 1 Stuve diagrams We are going to use Stuve diagrams to understand some of the concepts we learned in previous classes. The Stuve diagram is used by NWS. e. Refsdal Diagram [reading assignment] A = -T ln p B = ln T (a) Only isotherms are straight lines; (b) Adiabat-isotherm angle depends on scale; (c) Area is proportional to energy (work). This thermodynamic diagram is used by U.S. Navy. g. The Tephigram: [reading assignment] Click here for latest Stuve diagrams from website: Click here for latest Rawinsonde text data from website: Rawinsonde is the term for a radisonde instrument that is tracked to determine wind information. The radiosonde package directly measures the atmospheric pressure, temperature and humidity at a series of levels while ascending through the ...

On the Actual diagram on the web, there will be three sounding lines (one for the dewpoint, one for the temperature and one for the parcel lapse rate from the surface). The parcel line is easy to pick out, it is a smooth curve first following a dry adiabat and then after saturation following a moist adiabat. 05.09.11 Meteorology 101: Atmospheric Sounding Charts. Posted in Weather Education at 8:00 am by Rebekah. The last post in the weather education series (now three weeks ago!) dealt with upper-air maps, including pressure surfaces and the basics of how to read upper-air maps.The last segment of reading weather maps will be on soundings, but I will break it up into two posts. One version of the thermodynamic diagram is the Stuve diagram, shown in our textbook. (Another is the skew-T/log-P, or "skew-T" for short, so named because one of the primary axes of the graph [temperature] is skewed clockwise by 45°. It is harder to learn to read but a little more useful meteorologically.) Construction of a Stuve Diagram SKEW-T, LOG-P DIAGRAM ANALYSIS PROCEDURES I. THE SKEW-T, LOG-P DIAGRAM The primary source for information contained in this appendix was taken from the Air Weather Service Technical Report TR-79/006.1 The Skew-T, Log-P Diagram is the standard thermodynamic chart in use in most United States weather service offices today.

Wiring Diagram For A Warn Z3500 Winch. 01.09.2018 01.09.2018. Honeywell Vista 15p Wiring Diagram Aug 26, Stuve Diagrams are one type of thermodynamic diagram used to then the saturation mixing ratio can be read directly from the chart. Also, the tropopause (the boundary between the troposphere & the stratosphere) is shown to be at about mb. This is the height in the very high levels of the. From the Stuve diagram, it seems the atmosphere ... Stuve and Skew-T Diagrams Stuve Diagram Skew-T Diagram Data plotted on the skew-T diagram comprise temperatures, dewpoints, and wind speed and direction. Once plotted on the skew-T diagram, other unreported meteorological quantities describing atmospheric moisture and thermodynamic properties, such as humidity, stability, and other temperature A Stüve diagram is one of four thermodynamic diagrams commonly used in weather analysis and forecasting. It was developed circa 1927 by the German meteorologist Georg Stüve (1888-1935) and quickly gained widespread acceptance in the United States to plot temperature and dew point data from radiosondes.. This diagram has a simplicity in that it uses straight lines for the three primary ...

[help] Stuve Diagram I'll preface this by saying I am taking an intro meteorology class however it's online and I'm struggling. I cannot for the life of me find a good video or explanation on how to understand what I'm looking at.

Sounding andSounding and Stuve Diagram • The vertical structure of the atmosphere above a location on the Earth measured by athe Earth measured by a rawinsonde is called a sounding. • The sounding is usually plotted on a Stuve Diagram which uses pressure (bi(mb ; in log f)form) as its vertical axis and temperature (°C) as the horizontal axis.

One version of the thermodynamic diagram is the Stuve diagram, shown in our textbook. Another is the skew-T/log-P, or "skew-T" for short, so named because one of the primary axes of the graph (temperature) is skewed clockwise by 45°. It is harder to learn to read but a little more useful meteorologically. Stuve and Skew-T/Log-P Diagrams

Sarah's Stuve diagram Matlab assignment. 1. From the Stuve diagram, it seems the atmosphere is unstable in the low levels from the surface up to 700 hPa. It continues to be unstable up into the mid-levels until 500 hPa. At about 500 hPa, the environmental lapse rate begins to follow the process lapse rate so the atmosphere has become neutral.

How To Read Skew-T Charts If you haven't seen a Skew-T chart before, to say they can look a little intimidating is a huge understatement. But with a little practice, you can become a Skew-T master and open up new doors to learn about a variety of meteorological subjects.

Skew-T Log-P Diagrams. The "Skew-T Log P" thermodynamic diagram used for plotting upper air observations. Once the radiosonde observation is plotted, the Skew-T will show the temperature, dew point, and wind speed/direction. From these basic values a wealth of information can be obtained concerning the meteorological condition of the upper air.
